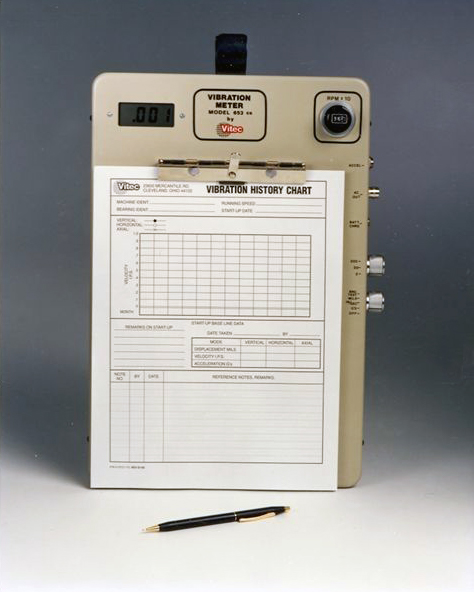

653CS Clipboard Style Vibration Meter and Bearing Tester Kit (Metric Units)

The 653CS provides economical protection against rotating machinery failure by indicating increasing vibration levels. These lightweight units make it easy for all plant personnel to obtain accurate vibration readings.
Measuring and recording vibration data taken on rotating plant machinery enables users to develop trending charts which will alert personnel to possible future machinery problems.
These portable units provide three modes of measurement for quick detection of low or high frequency vibration: displacement (mils), velocity (in/sec) and acceleration (G’s). Internal rechargeable batteries provide up to 40 hours of field use. An AC signal output allows for analysis with an oscilloscope or other signal analyzer.
The Models 653CS is a digital vibration meter with the added function of a bearing test mode which allows for early detection of defective anti-friction bearings (ball or roller) and gears.



Acceleration (G’s)
Displacement (mils)
Velocity (in/sec)


0 to 2
0 to 20
0 to 200


Tuneable High Pass


± 5% from 5 Hz – 2 KHz, useable to 5 KHz


3 1/2 digit LCD

Power Supply

Rechargeable Ni-Cad Battery

Battery Life

Approx. 40 reading hours


Model 4071 Accelerometer


AC output for use with oscilloscope or analyzer


14 in


9 1/2 in


1 1/8 in

Instrument Weight

3 lb

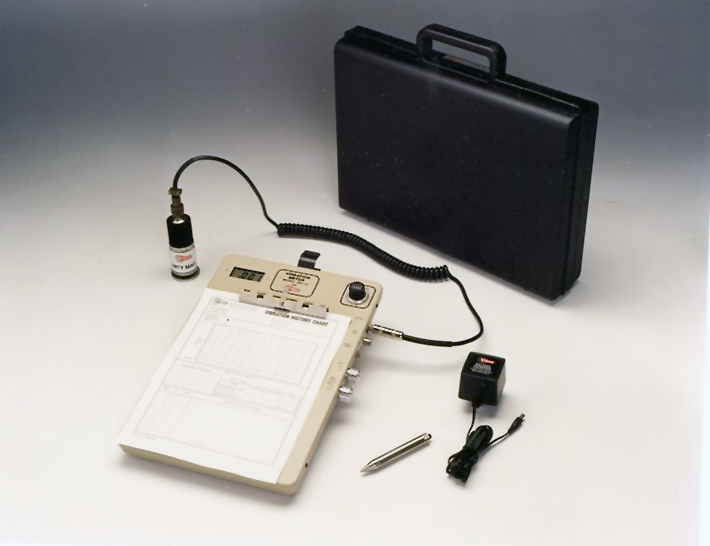

Kit Includes

  • Vibration Meter
  • M4071 Accelerometer
  • Magnetic Base (Mity Mag)
  • 1.53 -m Coiled Cable
  • Carrying Case
  • Pencil Probe
  • Battery Charger
  • Instruction Manual
  • Vibration History Pad


  • For easy, low-cost predictive maintenance
  • Helps reduce your maintenance cost
  • Detects bearing and gear problems
  • Identifies source(s) of excessive vibration
  • Easy field usage and data trending
